Floor programmable wired WiFi GoSmart thermostat P56S01F
Product description
Smart living is even more affordable
Create your own smart home with EMOS GoSmart and other TUYA-compatible smart devices. Connect individual products, set up automation of their activities and control them remotely using the fully localised and intuitive mobile app.
Keep the heat under control – smartly and from anywhere

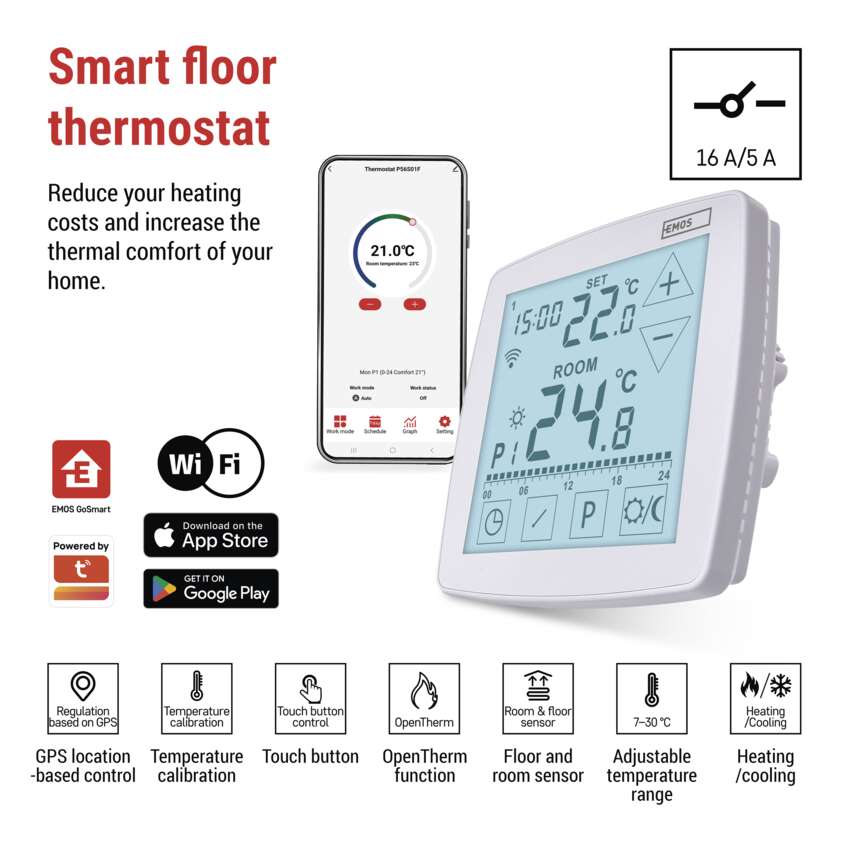

The smart floor thermostat P56S01F from the EMOS GoSmart series will help you maintain the ideal temperature, save energy and enjoy maximum comfort at the same time. Thanks to the advanced OpenTherm technology, it automatically optimises heating and cooling according to current conditions, ensuring efficient operation without unnecessary losses. Add to this clever features – GPS location control, temperature scenario planning, control via app from anywhere and support for Google Assistant and Amazon Alexa – and you have a truly invaluable helper in your home. The modern design, created exclusively for EMOS, makes the thermostat not only practical but also a stylish addition to any interior.
Regulation for both heating and cooling system
You can connect the smart floor thermostat to heating system and cooling unit. In winter, the thermostat maintains the optimum temperature and avoids costly overheating. On hot summer days, the thermostat takes care of cooling without unpleasant temperature shocks. Enjoy the feeling of perfect comfort all year round. You can select a temperature range of 7 °C to 30 °C on the thermostat, which can be adjusted in increments as small as 0.2 °C.
The temperature calibration function further ensures that the readings displayed on the thermostat exactly match the readings from your favourite devices – such as a thermometer or weather station.
Thanks to the clever GPS function, the thermostat automatically turns on heating or cooling so that you are always greeted by the ideal temperature when you return. And if you go on holiday and forget to turn the heating down, no problem – you can adjust everything remotely at any time via the Mobile App EMOS GoSmart. Convenience, savings and security – wherever you are.

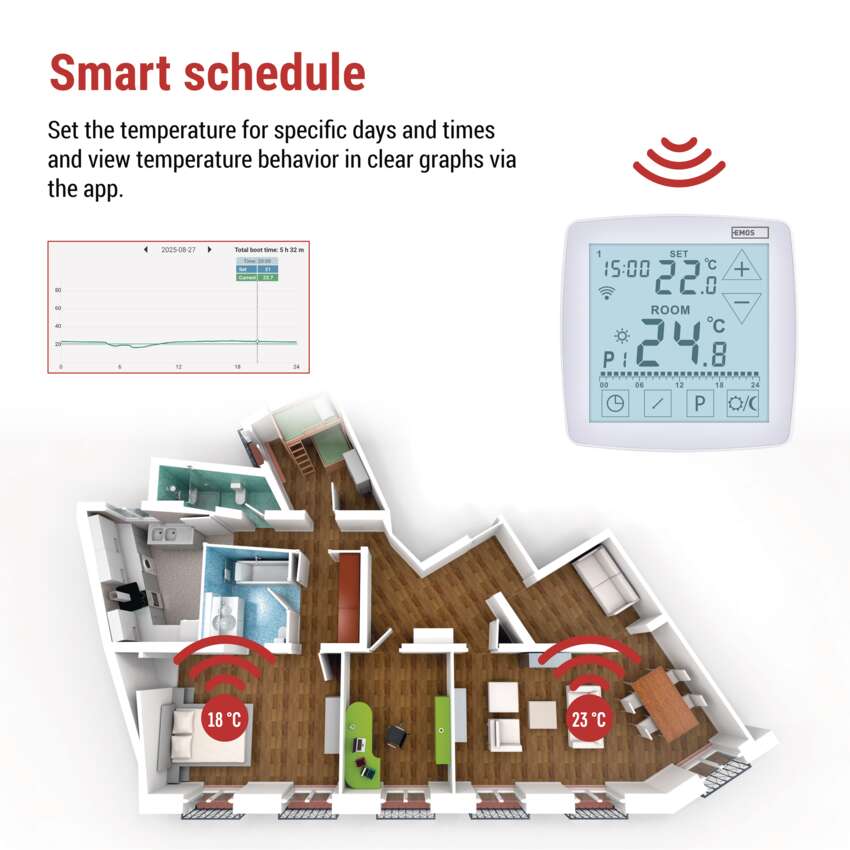

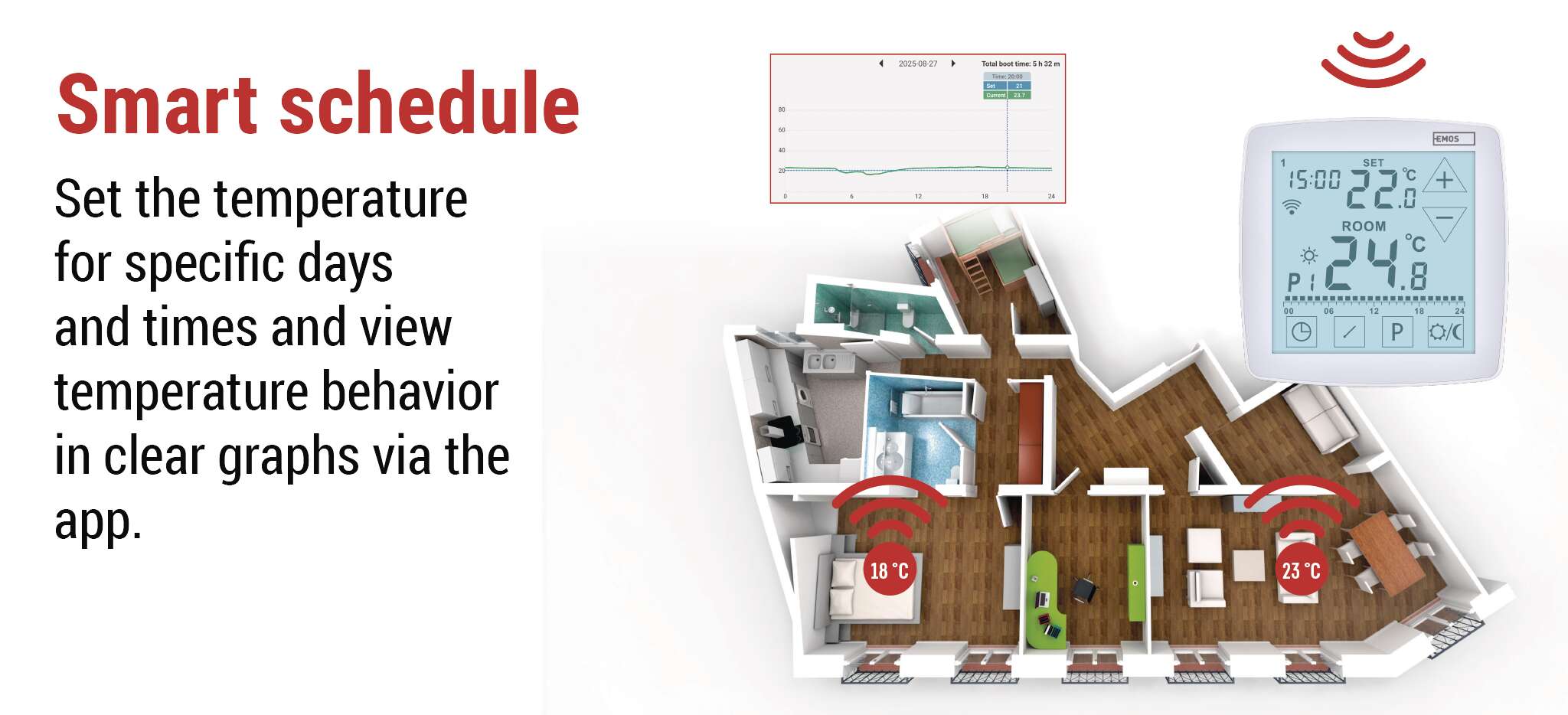

The smart thermostat P56S01F with 16A switched relay can control not only underfloor heating, but also devices with higher loads, such as infrared panels or direct-fired heaters. It offers up to 6 temperature programs per day plus 3 user-adjustable scenarios that you can easily adapt to your needs.
You can connect the thermostat to a boiler that supports OpenTherm communication. The advantage is to control the boiler output not only by the room temperature, but also by the system water temperature or other variables. Switching is done by OT and by relay. Most thermostats have either an OT output only or a relay output. The P56S01F smart thermostat has both outputs for connection to the boiler. The thermostat increases heating system efficiency, reduces costs and is simple to install thanks to OT control.

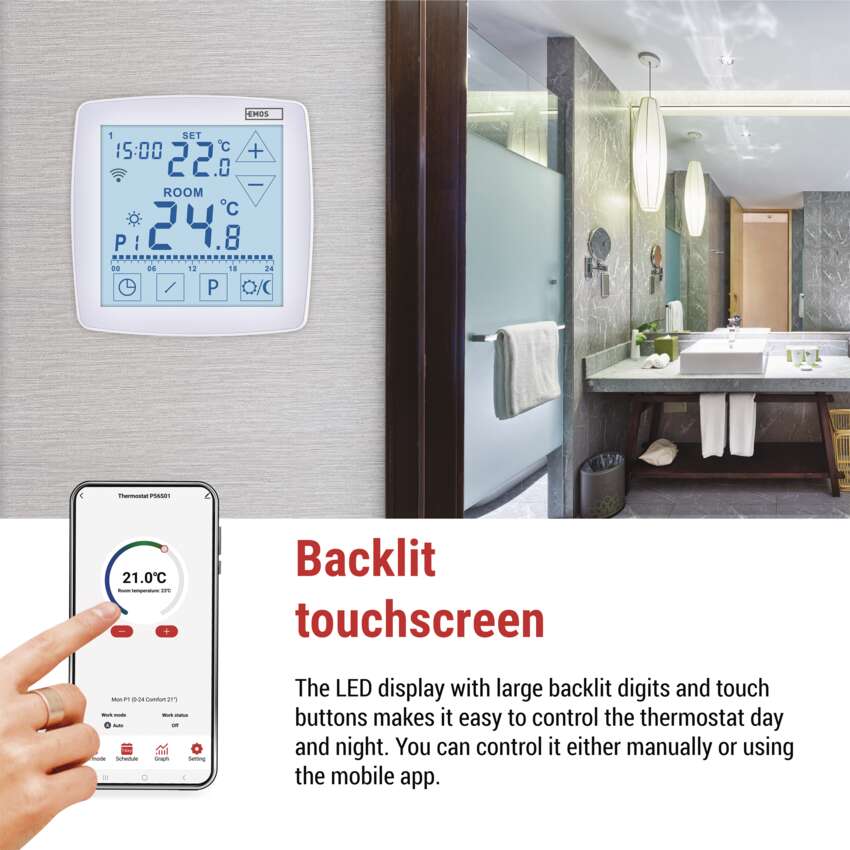

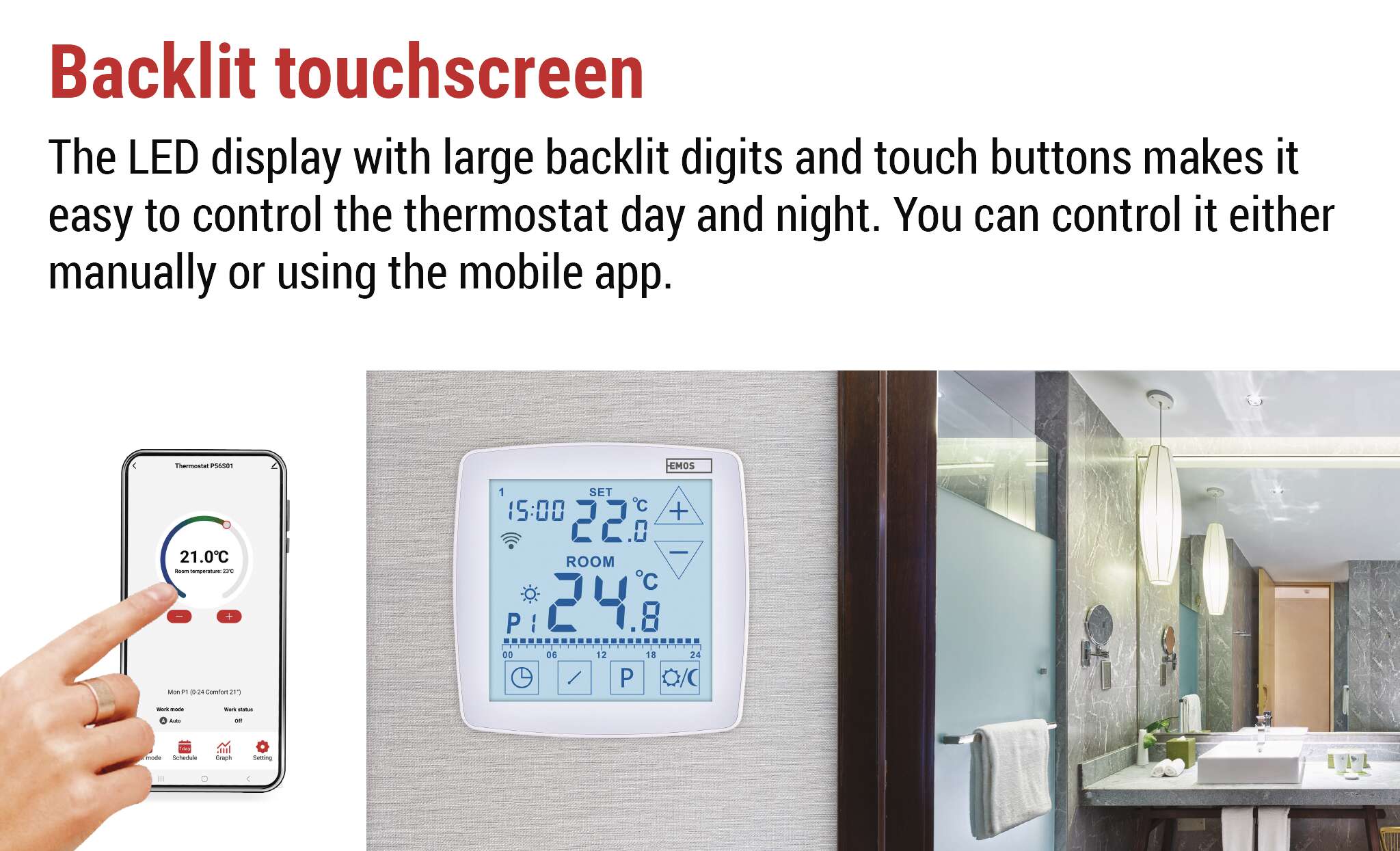

The P56S01F thermostat combines practical functionality with a modern, timeless design that fits any interior. The backlit touchscreen display is clear and intuitive – the large digits make it easy to see the current and set temperature, and the backlight makes it comfortable to operate even at night without having to turn on the light. Plus, the thermostat supports Amazon Alexa and Google Assistant so you can control it with voice commands.

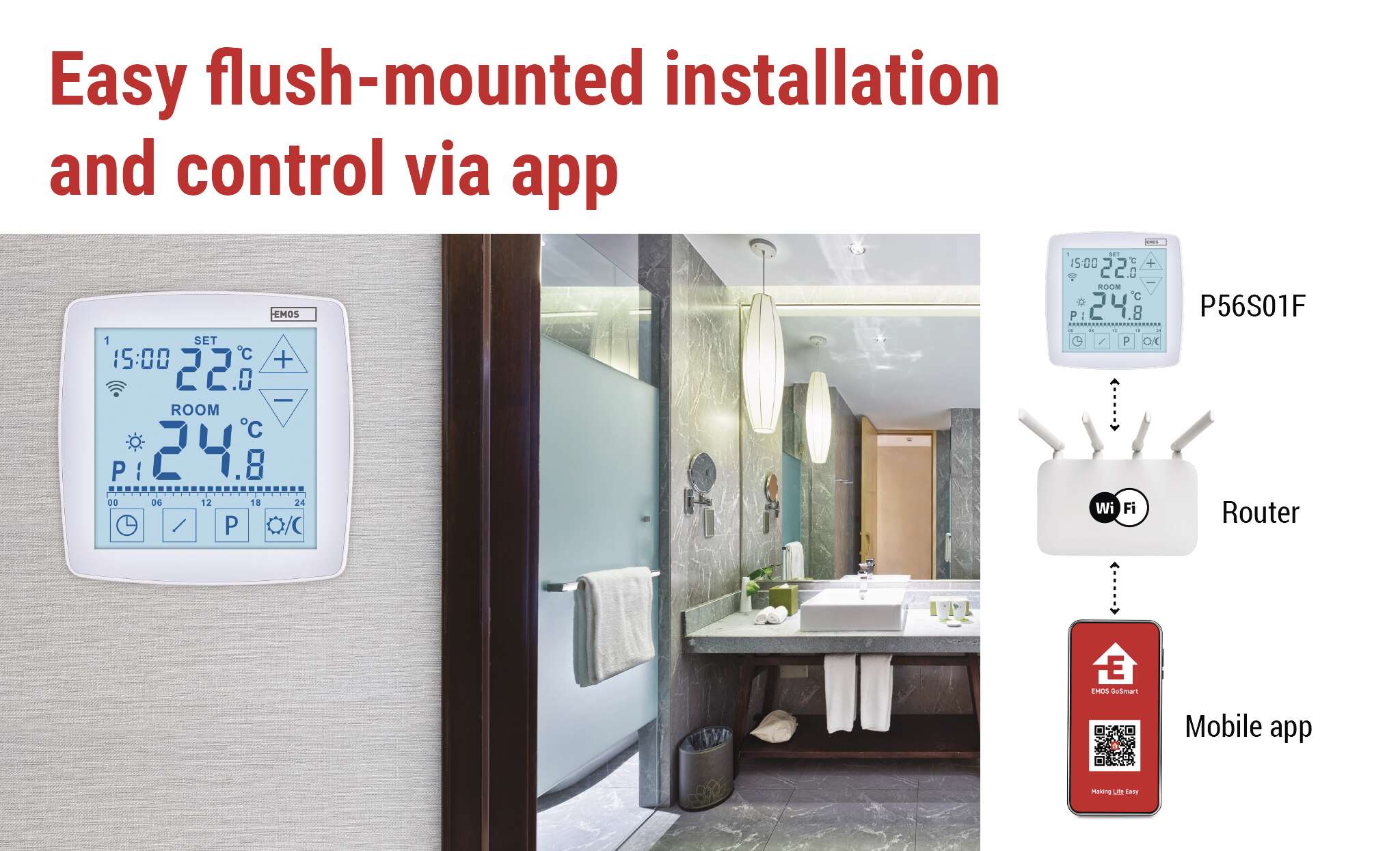

Mounting and connection to the EMOS GoSmart system

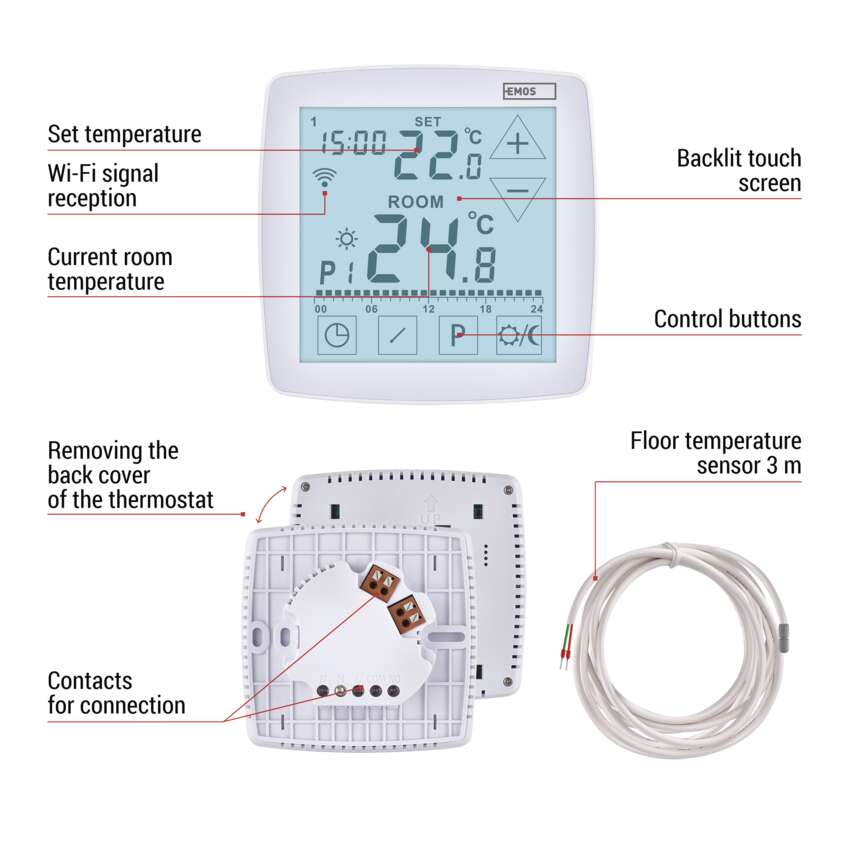

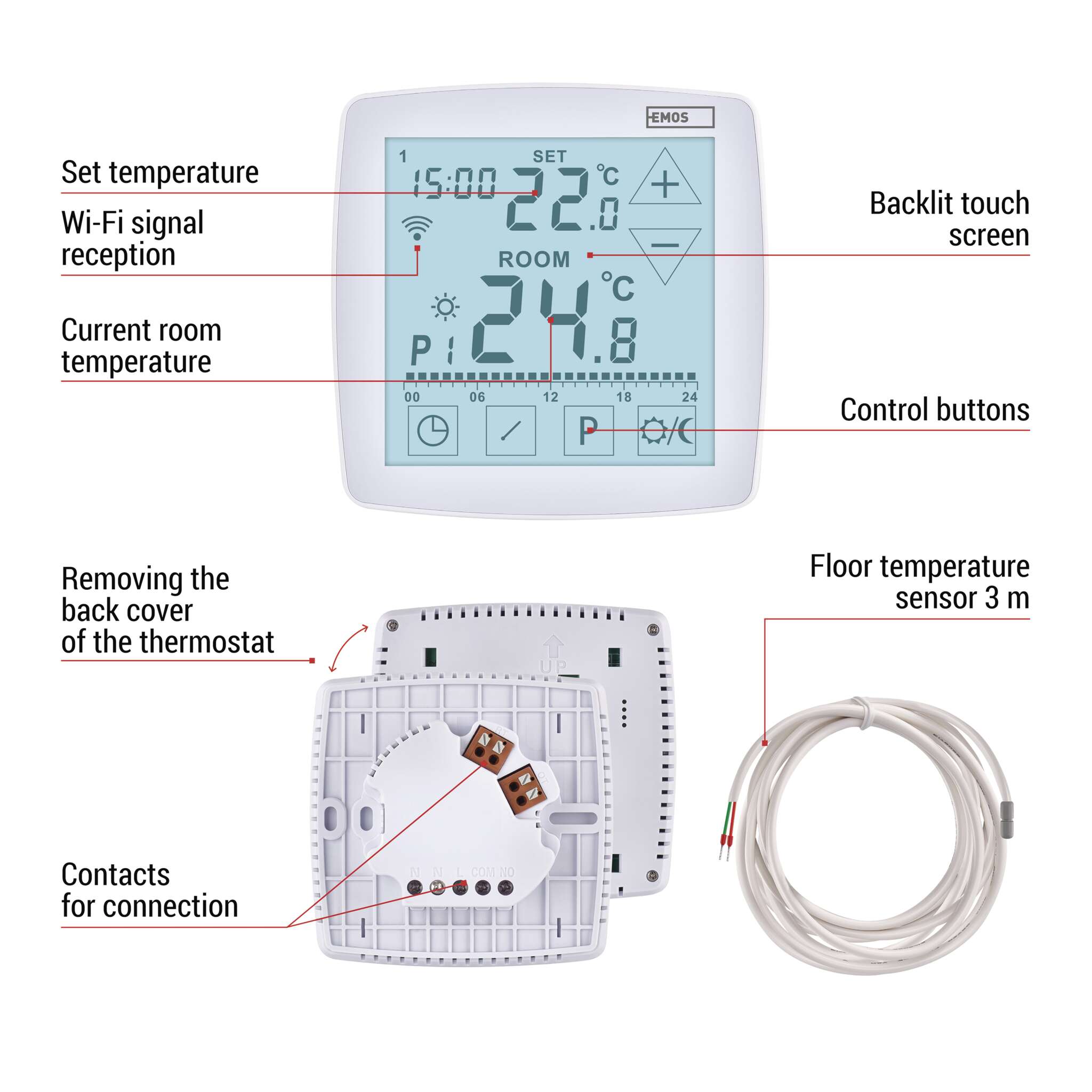

The smart thermostat P56S01F is equipped with a 3 meter long cable with temperature sensor, which thanks to its length can be conveniently placed in the floor to your underfloor heating. You then screw the thermostat installation pad into the appropriate mounting box, connect the wires and temperature sensor cable according to the wiring diagram and finally attach the front cover. And you’re done! The P56S01 smart thermostat is powered from a 230 V AC mains power supply.

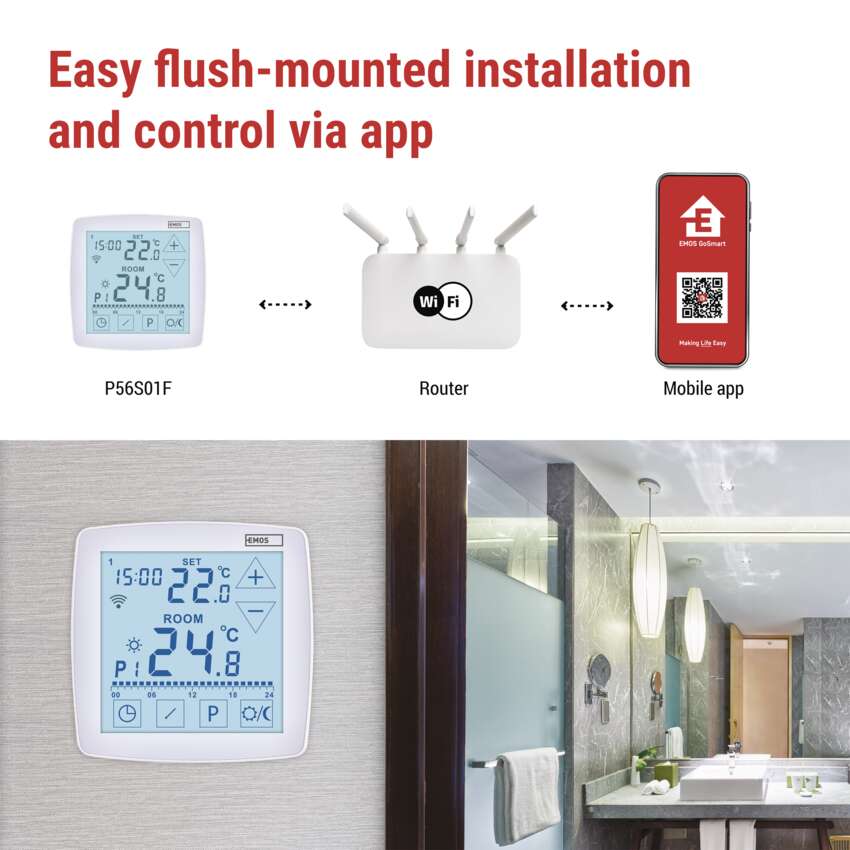

Then just connect the device to your home Wi-Fi network and pair it with the EMOS GoSmart mobile app, which is available for both Android and iOS.

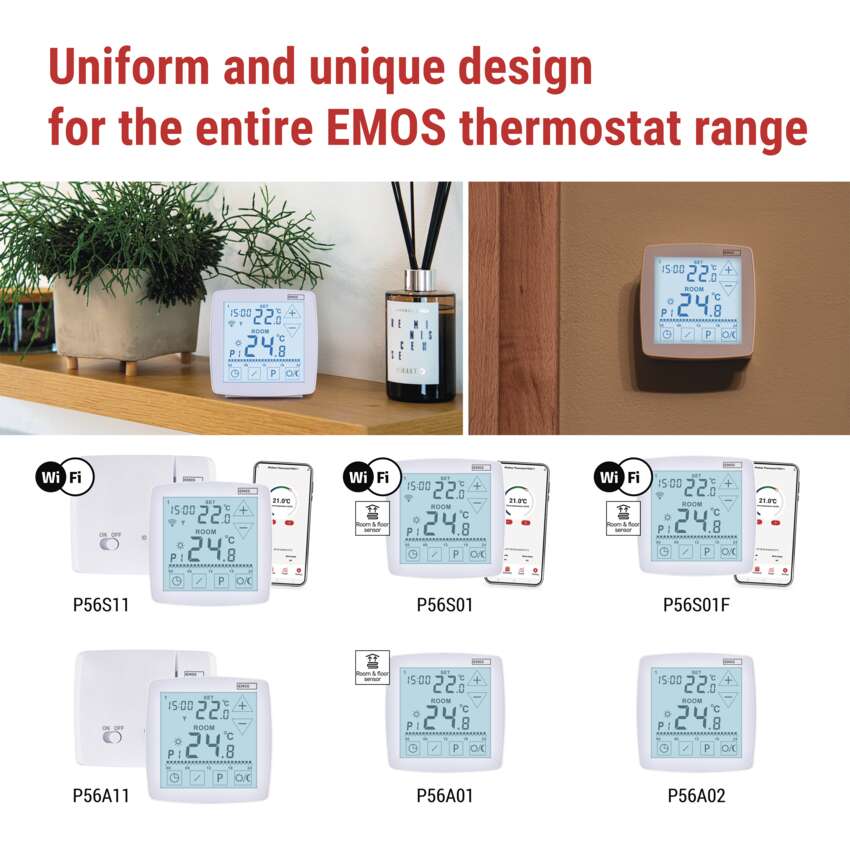

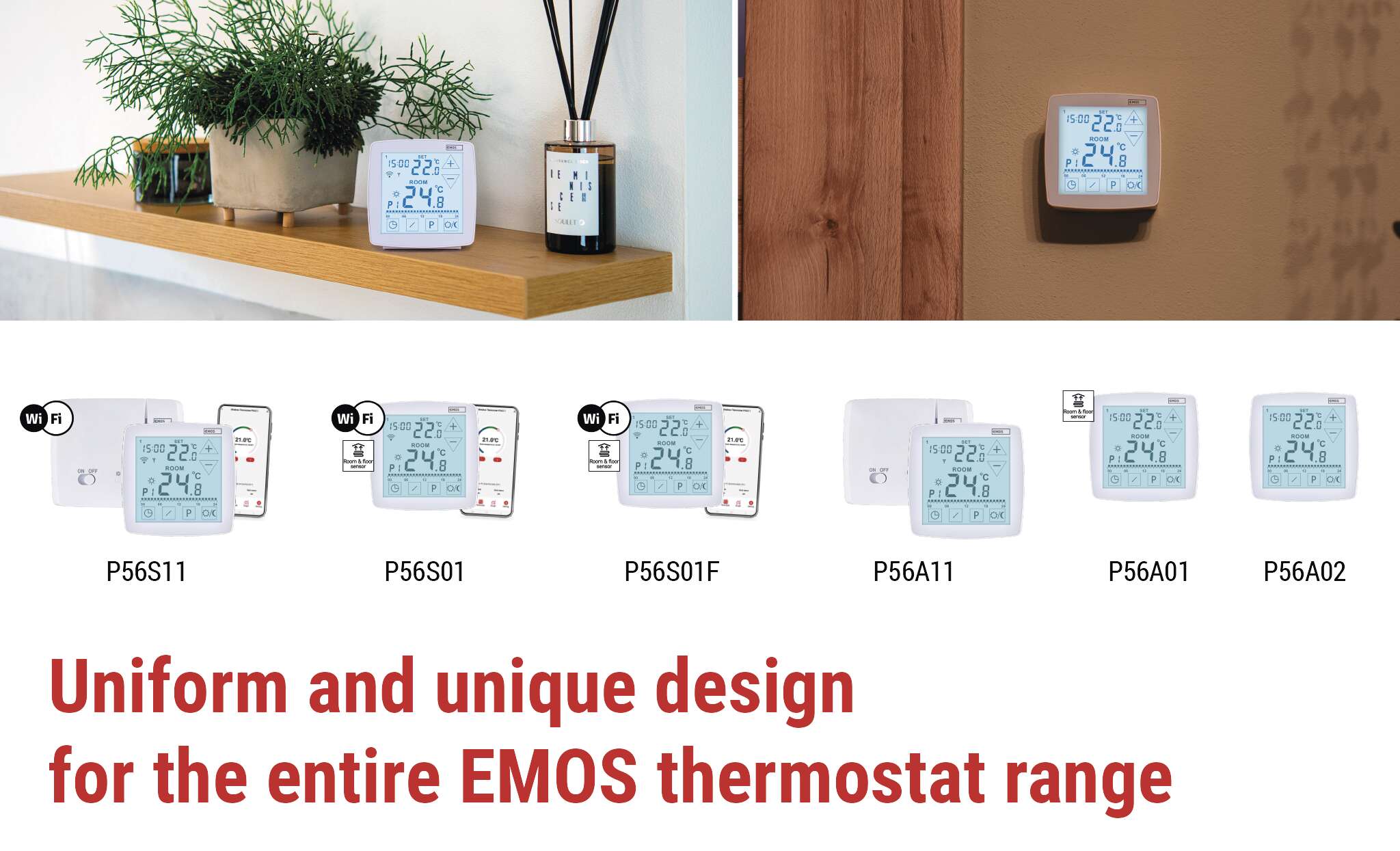

Choose the right thermostat for your needs
Discover our new range of thermostats – from classic to smart, with floor sensor or built-in, designed in an exclusive design exclusively for EMOS.
Video tutorials
Technical specifications
| Parameter | Value |
|---|---|
| type of control | programmable electronic room thermostat, option to control via mobile phone (iOS, Android) |
| thermostat type | wired with OpenTherm communication + underfloor heating, cocealed |
| control mode | heating and cooling system |
| temperature adjustment | from 7 °C up to 30 °C, after 0.2 °C |
| temperature adjustment type | comfort and economy temperature |
| adjustable variance of temperature | # |
| temperature measurement | 0 °C to 40 °C, resolution 0.1 °C |
| capillary sensor length | – |
| number of programs | 6 + 3 customizable for users |
| ON/OFF function | yes |
| backlight display | yes |
| colour | white |
| switching | 230 V AC or potential-free |
| range in open space | – |
| anti-frost protection | yes |
| power of receiver | – |
| holiday mode | yes |
| Set-back function | no |
| possibility to connect to other detectors | no |
| power source | 230 V AC |
| power of gateway | – |
| Parameter | Value |
|---|---|
| power of transmitter | – |
| operating frequency | – |
| part of the package | thermostat, floor sensor 3 m, Ø 8 mm |
| switching load | 16 A resistive, 5 A inductive |
| temperature calibration | yes |
| supported OS | Android, iOS |
| compatibility | EMOS GoSmart, TUYA, LIDL, Smartlife, open system |
| protocol | Wi-Fi |
| transmission frequency | 2,4 GHz WIFI (IEEE802.11b/g/n) |
| control by voice assistants | yes (Amazon Alexa, Google Assistant) |
| notifications to the mobile app | yes |
| aplication languages | EN, CZ, SK, PL, DE, HU, SI, FR, + 60 other languages |
| line | GoSmart |
| floor sensor | NTC 10 kΩ, 3 m |
| warranty period | 2 years |
| dimensions | 98 × 37 × 98 mm |
| gateway's dimension | – |
| receiver's dimension | – |
| transmitter's dimension | – |
| packaging | 1 pc, small box |
