GoSmart switch module IP-2101SW, WiFi, 1-channel
GoSmart switch module IP-2101SW, WiFi, 1-channel

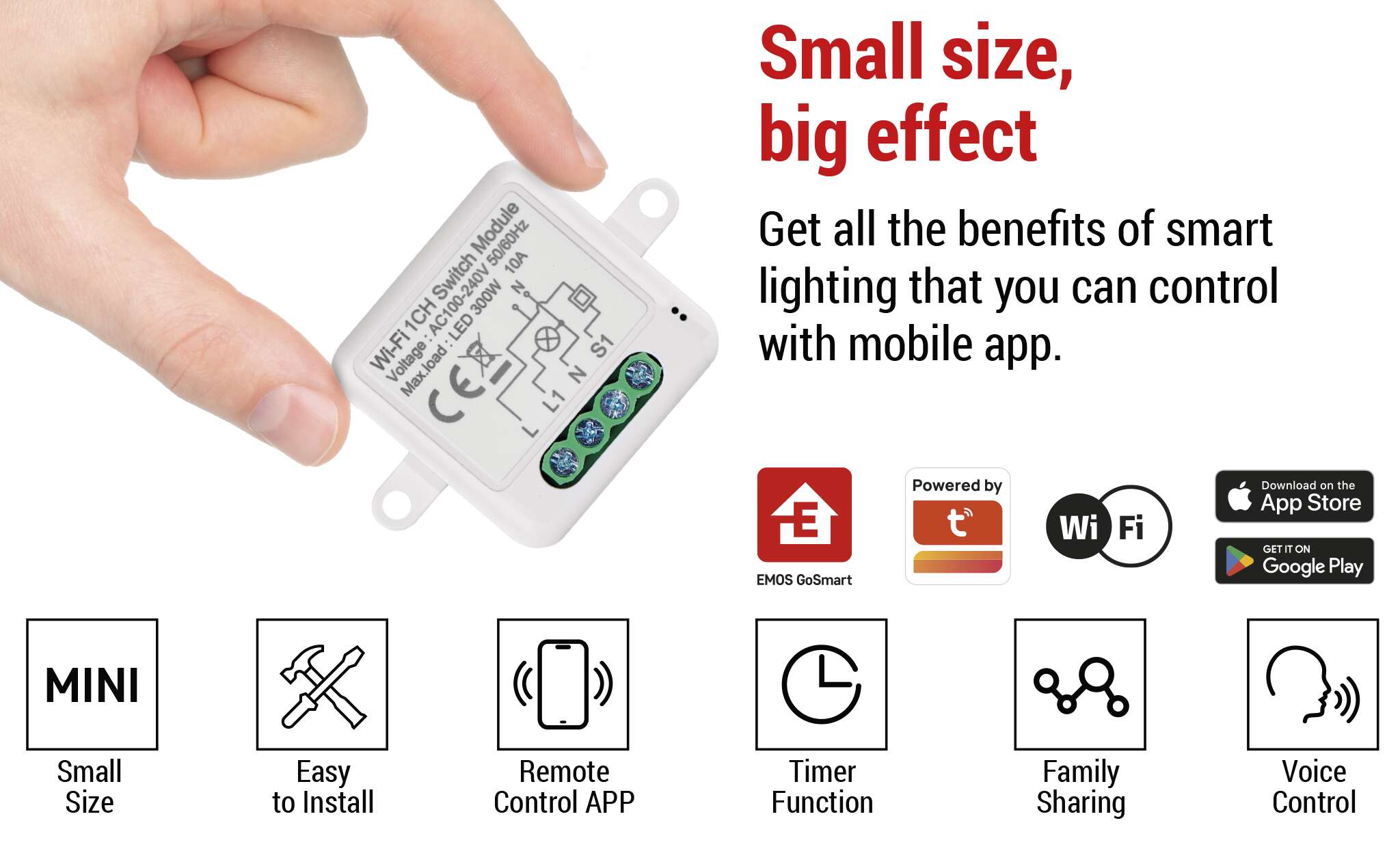

Small size and big effect. These are our switching and dimming modules that allow you to control the lighting in your home with a mobile app. You can set the intensity of the lights as well as the time they are switched on or off.
Find sellerProduct description
Smart living is even more affordable
Create your smart home with EMOS GoSmart smart devices and other TUYA-compatible devices. Connect individual products, set up automation of their activities and control them remotely using the fully localized and intuitive mobile app.
Turn your switch into a smart one
- Module for remote lighting control indoors
- Wide possibilities for automation and connection to other devices in the EMOS GoSmart system
- Additional features: Scene creation, device grouping, timer, family sharing
- EMOS GoSmart mobile app for Android and iOS in over 60 languages
- Compatible with voice assistants Google Assistant and Amazon Alexa
- Also offers dimming, motor and garage modules

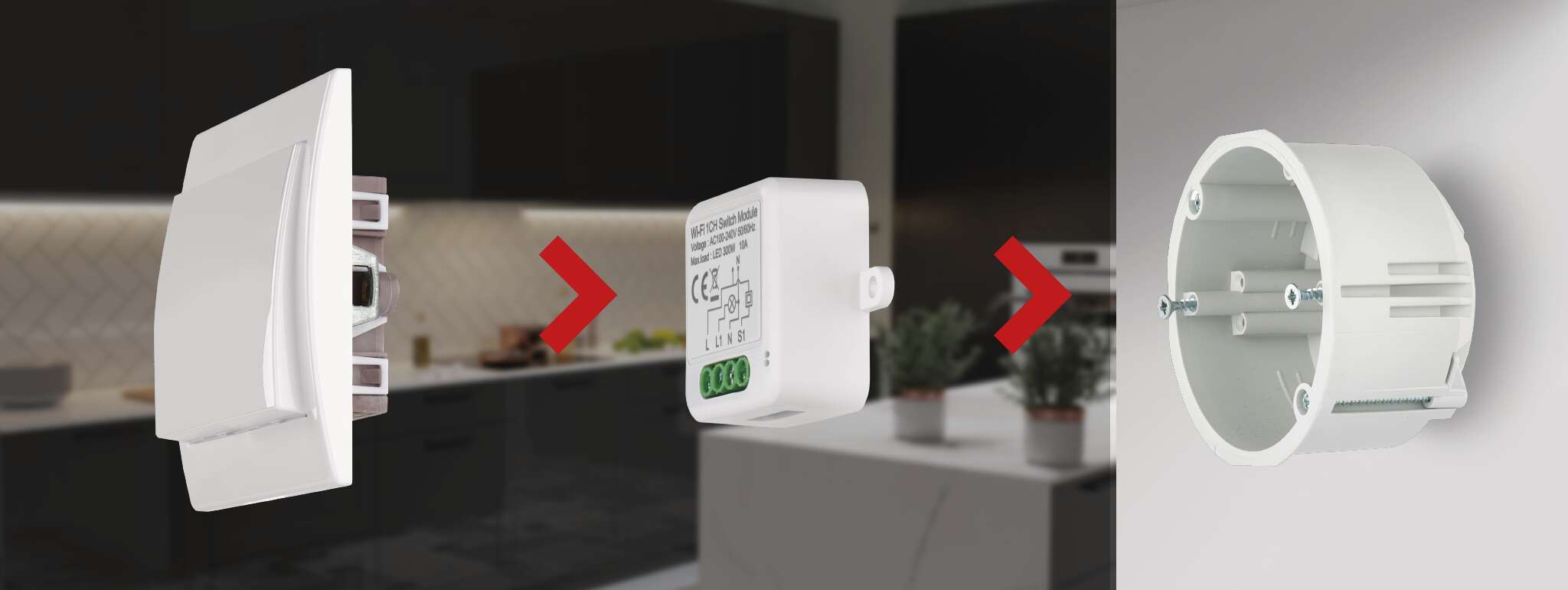

Simple Installation
- Easy installation in all common types of installation boxes
- The module can also be installed in different locations, e.g.
- Connection of the switch requires the presence of a zero N wire at the connection point
- Pairing and control of the module using a custom application via your home Wi-Fi network
The smart module can be connected to other devices in your home (clocks, lights, door, window, heating sensors). After pairing with the EMOS GoSmart mobile app, you can automate and schedule times for individual appliances. For example, automatically turn on the lights during your holiday. Create a smart home that adapts to your needs.

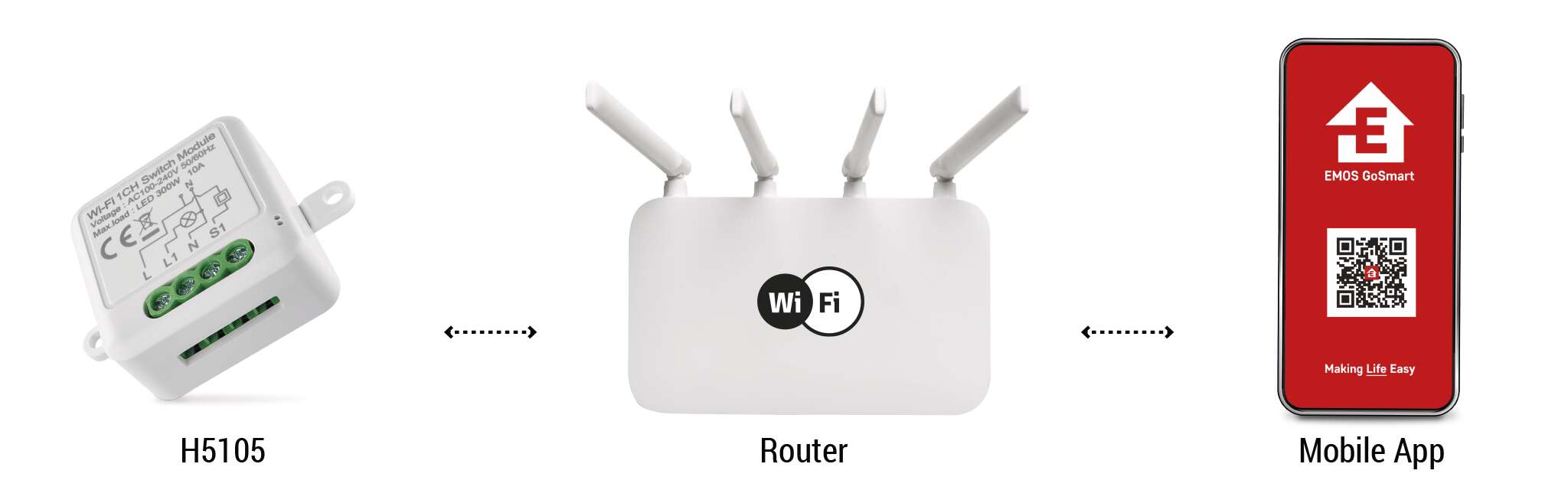

Control via app
Connect the module to your Wi-Fi network and pair it with the EMOS GoSmart mobile app, available for Android and iOS. Thanks to the Wi-Fi protocol, which also connects to the Internet via the router, you can perform remote control and monitoring of your devices.
Wiring diagrams
You can choose to control one or two separate channels. So you can choose the appropriate type according to the switch you want to convert to smart(single switch or double switch).
1 Channel Switch – Without Switch
1 Channel Switch – With One Switch
1 Channel Switch – With Two Switches
Technical specifications
| Parameter | Value |
|---|---|
| product | IP switching module |
| connectivity | 2.4 GHz WIFI |
| maximum number of connected clients | – |
| compatibility | EMOS GoSmart, TUYA, LIDL, Smartlife, open system |
| control by voice assistants | yes |
| protocol | Wi-Fi |
| pairing | automatic, manual |
| aplication languages | EN, CZ, SK, PL, DE, HU, SI, FR, + 60 other languages |
| width | 40 mm |
| depth | 18 mm |
| Parameter | Value |
|---|---|
| height | 40 mm |
| weight | 30 g |
| use | indoor |
| number of control buttons | 1 |
| power supply | 230 V~/50 Hz, max. 0,3 W |
| supported OS | Android, iOS |
| source included in packaging | – |
| packaging | 1 pc, small paper box |
| line | GoSmart |
EMOS GoSmart app
Install the brain of your smart home on your mobile device.
Control all your products with a single app
Full localisation and ease of use
The EMOS GoSmart app makes it easy to control all your smart home devices via your mobile phone or tablet. Thanks to its perfect localisation, you can set it up to your native language.
Without complicated settings, the EMOS GoSmart app gives you an up-to-date overview of any activity in your home and allows you to conveniently control all your smart devices remotely.
