GoSmart switch module IP-2102SZ, ZigBee, 2-channel
GoSmart switch module IP-2102SZ, ZigBee, 2-channel

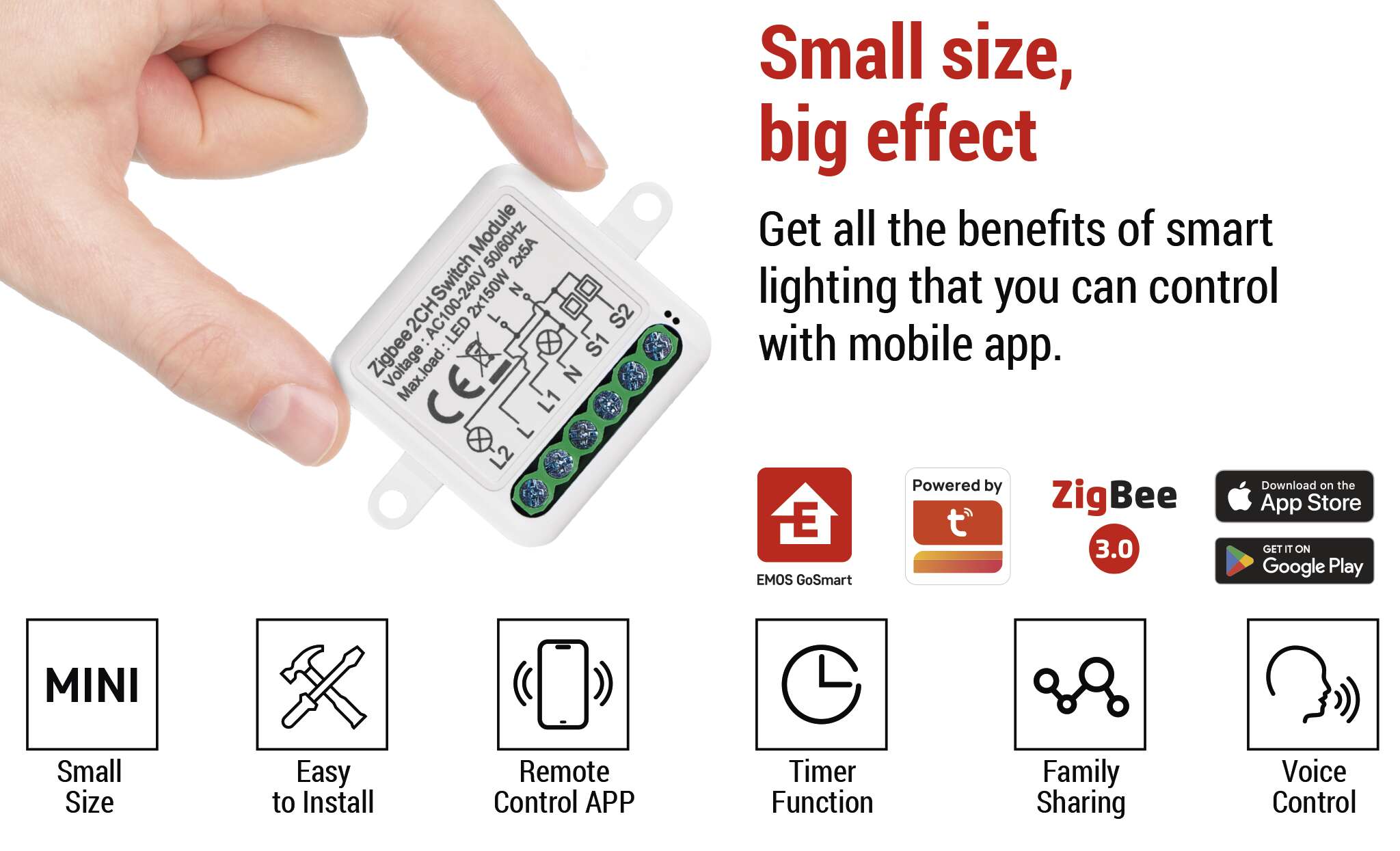

Small size and big effect. These are our switching and dimming modules that allow you to control the lighting in your home with a mobile app. You can set the intensity of the lights as well as the time they are switched on or off.
Find sellerProduct description
Smart living is even more affordable

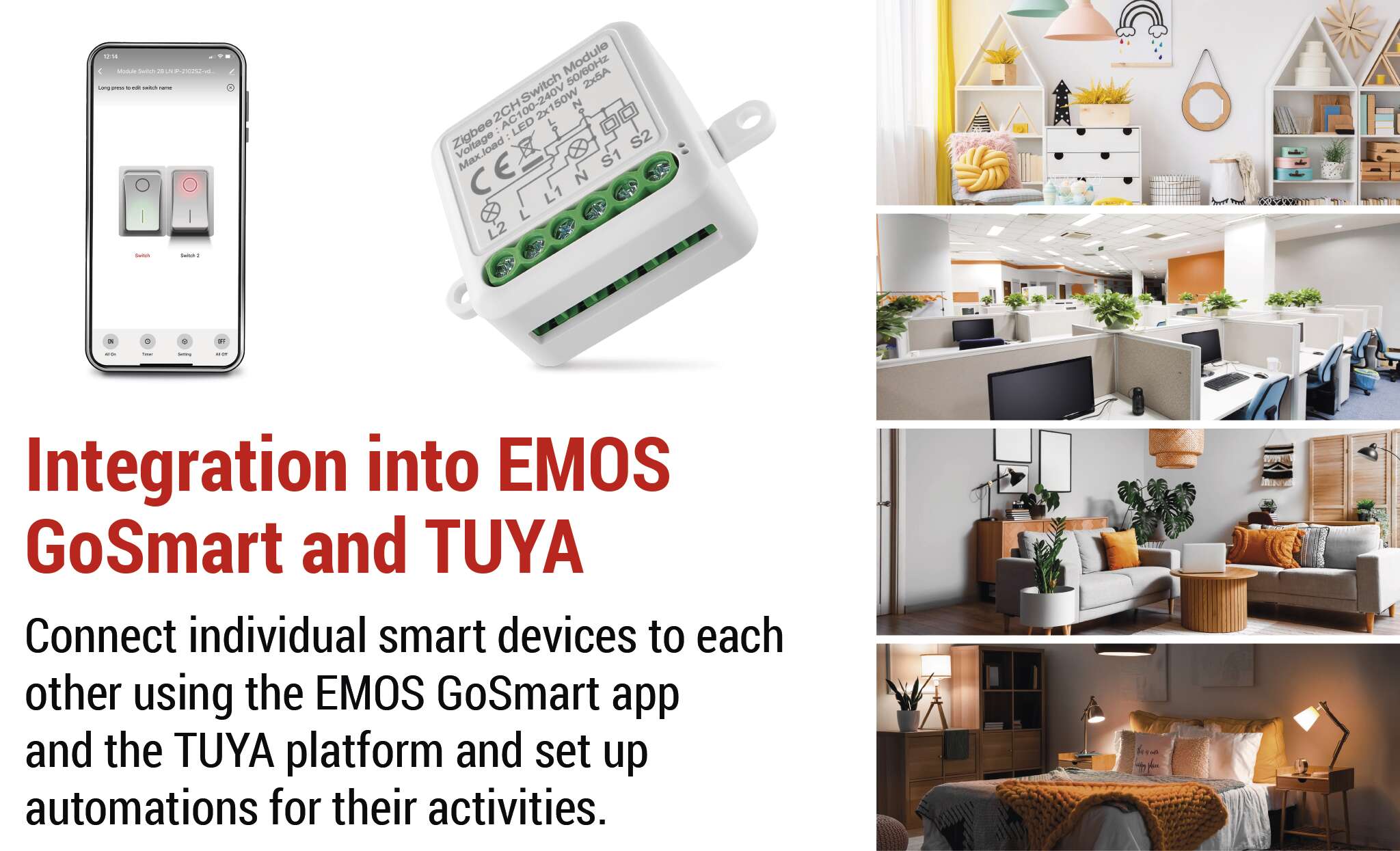

Create your own smart home with EMOS GoSmart smart devices and other TUYA-compatible devices. Connect individual products, set up automation of their activities and control them remotely using the fully localized and intuitive mobile app.
Turn your switch into a smart one
- Module for remote control of indoor lighting
- Wide possibilities for automation and connection to other devices in the EMOS GoSmart system
- Additional features: Scene creation, device grouping, timer, family sharing
- EMOS GoSmart mobile app for Android and iOS in over60 languages
- Compatible with voice assistants Google Assistant and Amazon Alexa
- Also offers dimming, motor and garage modules
Simple Installation

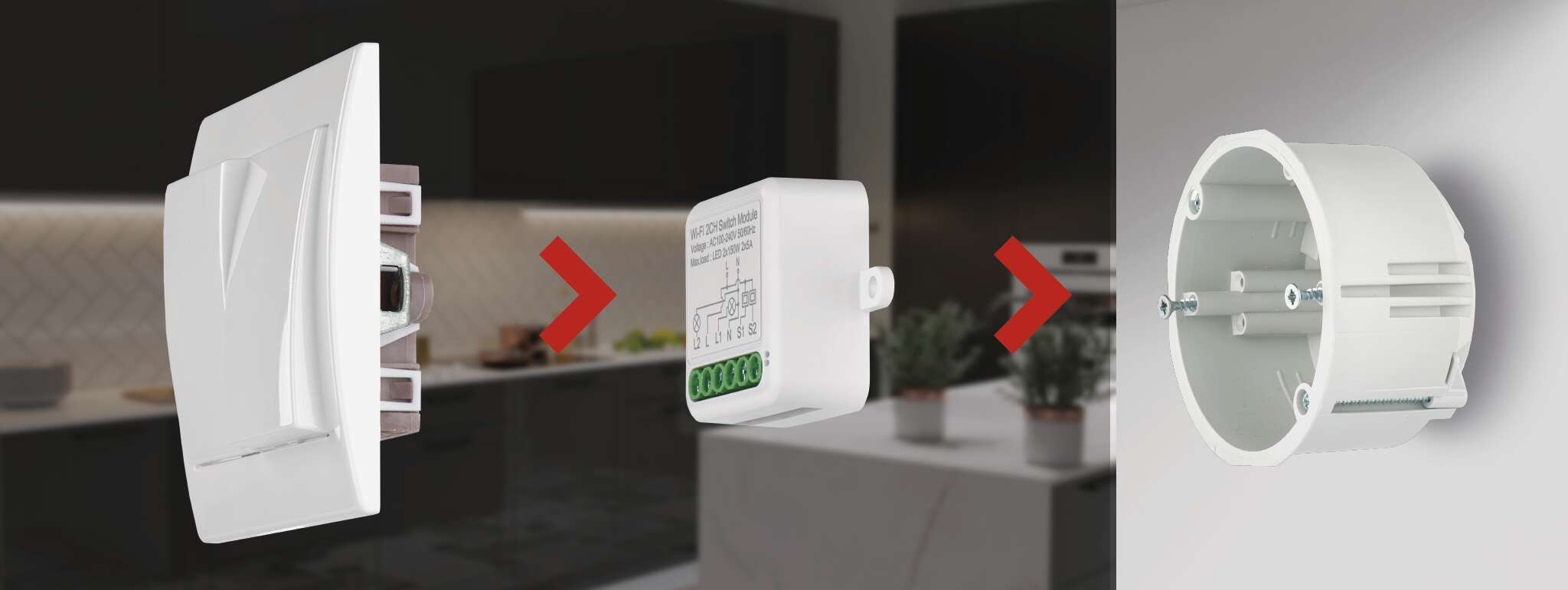

- Easy installation in all common types of installation boxes
- The module can also be installed in different places, e.g. …
- Pairing and controlling the module using a custom application via the Zigbee gateway (not included)
- With the 2-channel module you can control two circuits, e.g. the main light in the living room and a lamp or ceiling light
The smart module can be connected to other devices in your home (clocks, lights, door, window, heating sensors). After pairing with the EMOS GoSmart mobile app, you can automate and schedule times for individual appliances. For example, automatically turn on the lights when you are on holiday. Create a smart home that adapts to your needs.
Control with the app

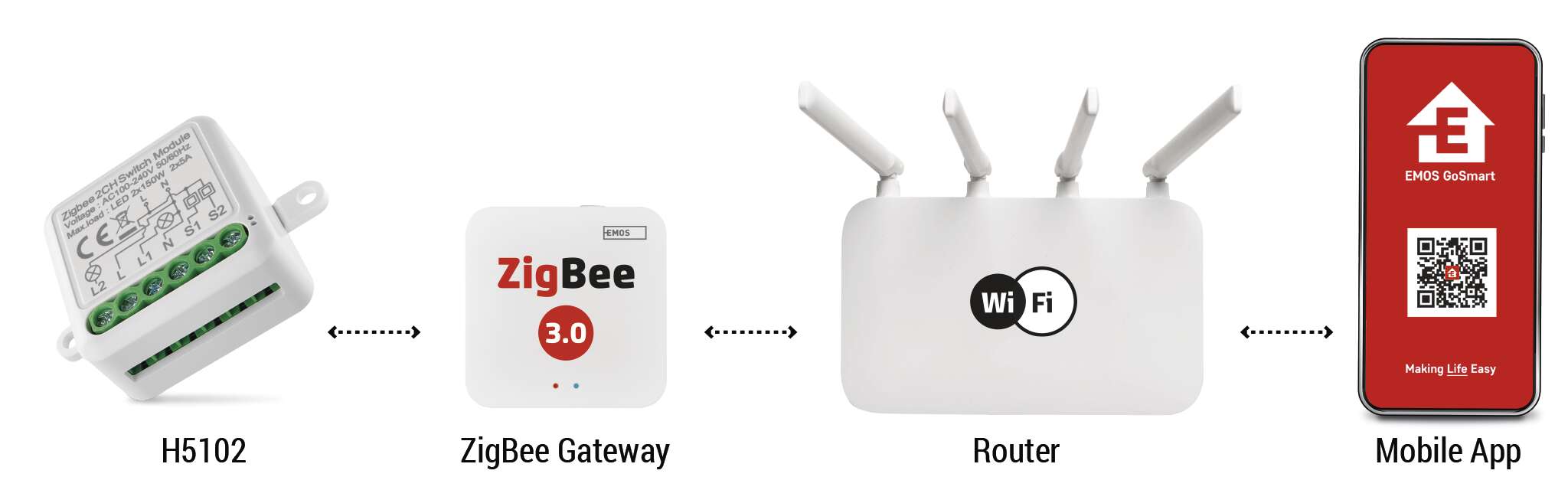

Control the Module with a ZigBee gateway and pair it with the EMOS GoSmart mobile app, available for Android and iOS. Because the modules are permanently powered, they also act as a extender of your ZigBee signal, allowing you to manage an ever larger number of ZigBee devices on a single network.
Wiring scheme
Switching module can be selected to control one or two separate channels. Thus, you can choose the appropriate type according to the switch you want to convert to smart (single switch or double switch).
2 channel switch- without switch
2 channel switch – with one switch
2 channel switch – with two switches
Technical specifications
| Parameter | Value |
|---|---|
| product | IP switching module |
| connectivity | ZigBee 2.4 GHz |
| maximum number of connected clients | – |
| compatibility | EMOS GoSmart, TUYA, LIDL, Smartlife, open system |
| control by voice assistants | yes |
| protocol | Zigbee 3.0 |
| pairing | automatic, manual |
| aplication languages | EN, CZ, SK, PL, DE, HU, SI, FR, + 60 other languages |
| width | 40 mm |
| depth | 18 mm |
| Parameter | Value |
|---|---|
| height | 40 mm |
| weight | 30 g |
| use | indoor |
| number of control buttons | 1 |
| power supply | 230 V~/50 Hz, max. 0,3 W |
| supported OS | Android, iOS |
| source included in packaging | – |
| packaging | 1 pc, small paper box |
| line | GoSmart |
EMOS GoSmart app
Install the brain of your smart home on your mobile device.
Control all your products with a single app
Full localisation and ease of use
The EMOS GoSmart app makes it easy to control all your smart home devices via your mobile phone or tablet. Thanks to its perfect localisation, you can set it up to your native language.
Without complicated settings, the EMOS GoSmart app gives you an up-to-date overview of any activity in your home and allows you to conveniently control all your smart devices remotely.
