GoSmart PIR sensor (motion sensor) IP20, ZigBee
Product description
Smart living is now even more accessible
Create your own smart home with EMOS GoSmart smart devices and other devices compatible with the TUYA platform. Connect individual products, set up automations for their functions, and control them remotely using a fully localized and intuitive mobile app.
GoSmart Motion Sensor
Step into a safer and more energy-efficient future with our compact and versatile smart motion sensor. The sensor detects motion within a 60° angle at a distance of up to 8 m and, thanks to infrared sensing , nothing escapes its notice even in low-light conditions. When motion is detected, it sends a notification to your mobile device via an app available for Android and iOS.
Easy installation and compact dimensions
Our motion sensor is the ideal choice for any home or office. Thanks to its CR123A battery with a long life, you don’t have to worry about frequent replacements. The sensor is compact, and its energy-efficient operation ensures effective energy use. Installation is quick and easy thanks to the included 3M adhesive tape and internal magnet, allowing for flexible placement according to your needs.
The smart motion sensor communicates via the wireless ZigBee 3.0 protocol. For proper operation, a compatible ZigBee gateway is therefore required, which connects the sensor to the mobile app and other smart devices. The ZigBee gateway is not included in the package and must be purchased separately. For trouble-free operation, we recommend using our H5002 gateway, which is fully compatible and allows for easy pairing and a stable connection between devices. Without a ZigBee gateway, the sensor cannot be used on its own or connected to a Wi-Fi network.
Connect the sensor to the ZigBee gateway and pair it with the EMOS GoSmart mobile app, which is available for both Android and iOS. Then use the app to control the sensor exactly as you need. Set up automations, view motion logs and pair with other smart devices.
You can use the GoSmart motion sensor to suit your needs. Place it near the staircase, and when motion is detected, the LED lighting in that area will turn on automatically. Or connect it to a siren to immediately let an unwelcome visitor know that they have violated your privacy.

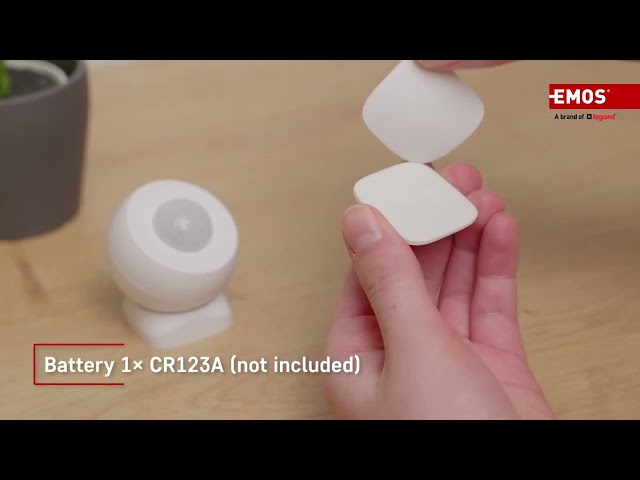

Video tutorials
Technical specifications
| Parameter | Value |
|---|---|
| dimensions | 50 × 50 × 55 mm |
| colour | white |
| sensitivity | – |
| detection distance | 8 m |
| detection angle | 60° |
| switching time | not stated |
| energy efficiency class | – |
| IP rating | IP20 |
| max. resistive load | – |
| power source | 1× CR123A (3 V) |
| packaging | 1 pc, paper box |
| sensor type | PIR |
| warranty period | 2 years |
| supported OS | Android, iOS |
| compatibility | EMOS GoSmart, TUYA, LIDL, Smartlife, Open system |
| Parameter | Value |
|---|---|
| protocol | Zigbee 3.0 |
| SD card storage | no |
| cloud storage | no |
| transmission frequency | 2,4 GHz ZigBee (IEEE 802.15.4) |
| control by voice assistants | no |
| voice communication | no |
| notifications to the mobile app | yes |
| aplication languages | EN, CZ, SK, PL, DE, HU, SI, FR, + 60 other languages |
| installation material | 3M tape |
| other functions | – |
| product | motion sensor |
| mounting type | surface-mounted |
| mounting hole | – |
| batteries included | no |
| max. capacitive load | – |
EMOS GoSmart app
Install the brain of your smart home on your mobile device.
Control all your products with a single app
Full localisation and ease of use
The EMOS GoSmart app makes it easy to control all your smart home devices via your mobile phone or tablet. Thanks to its perfect localisation, you can set it up to your native language.
Without complicated settings, the EMOS GoSmart app gives you an up-to-date overview of any activity in your home and allows you to conveniently control all your smart devices remotely.
