GoSmart switch module IP-2201SZ, ZigBee, 1-channel

GoSmart switch module IP-2201SZ, ZigBee, 1-channel

Find seller

Product description

Smart living is now even more affordable

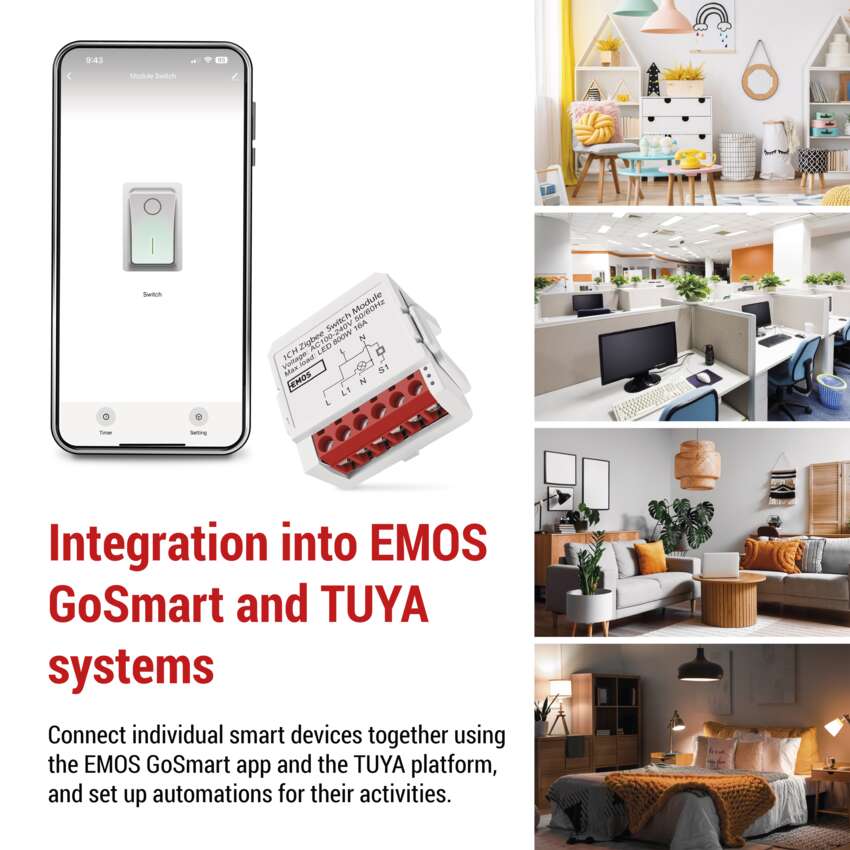

Create your own smart home with EMOS GoSmart smart devices and other devices compatible with the TUYA platform. Connect individual products, set up automations for their operations, and control them remotely using a fully localized and intuitive mobile app.

ZIGBEE Smart Switch Module

Turn ordinary lighting into a truly smart part of your home. The IP-2201SZ ZIGBEE smart switch module allows for convenient remote control of your lights from anywhere via the mobile app, whether you’re at home, at work, or on the go. Thanks to extensive automation options, you can easily create your own scenarios, set schedules, or connect your lighting to other devices in the EMOS GoSmart ecosystem. It also features device grouping, family access sharing, and voice control via Google Assistant or Amazon Alexa.

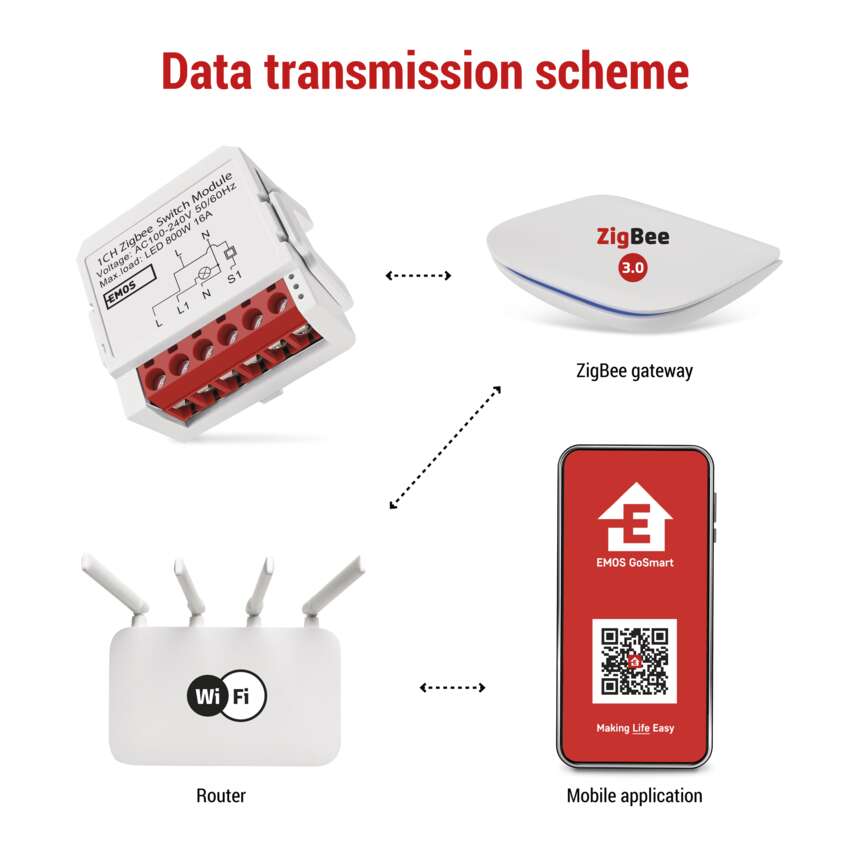

The module operates on the ZigBee protocol, meaning that actions are triggered from the local network rather than from the cloud. For the module to function properly, you must use the ZigBee gateway (H5002), available on our website, to pair it with the EMOS GoSmart app .

Control via the app

Did you forget to turn off the lights at home, or would you like to turn them on even when you’re not there? Now you can do all of this using your smartphone. The EMOS GoSmart app lets you turn lights on and off remotely. In the app, you can also choose to create groups of modules and control them all at once, or configure the behavior of a connected switch. You can also share devices with other members of your household, who will then be able to control the lights remotely just like you.

More settings options

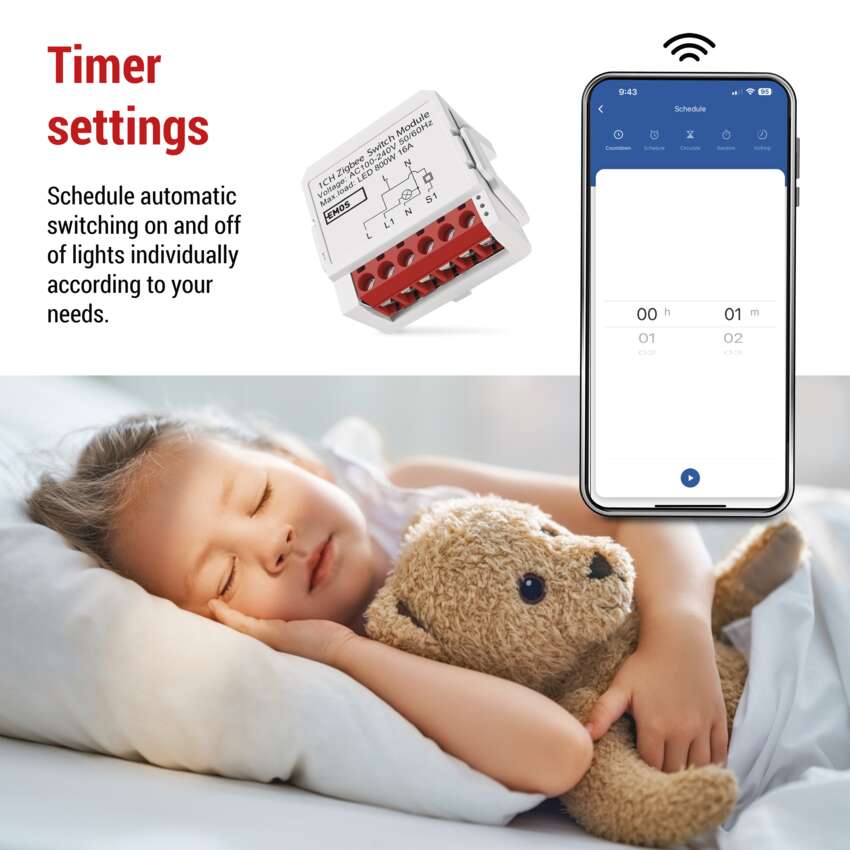

Enjoy lighting that adapts to your daily rhythm. Using the app, you can set automatic on/off times for your lights according to your own schedule or create smart scenes that link multiple devices. Everything then works completely automatically without the need for daily manual control. Another practical benefit is the last-setting memory feature, which restores the device to its original state after a power outage.

Easy Installation

The IP-2201SZ Zigbee Smart Switch Module was designed to make installation as simple as possible while offering maximum flexibility. You can easily install it in most standard electrical junction boxes, as well as in less traditional locations, such as behind drywall, in suspended ceilings, or directly on a DIN rail in an electrical panel.

Connect the module to the ZigBee gateway and pair it with the EMOS GoSmart mobile app, which is available for Android and iOS. Because the modules are continuously powered, they also act as a ZigBee signal extender, allowing you to manage an ever-growing number of ZigBee devices on a single network.

Do you prefer voice control to searching for your phone or a light switch? The IP-2201SZ ZigBee smart module is fully compatible with Amazon Alexa and Google Assistant voice assistants, so you can control your lighting with simple voice commands.

Technical specifications

Parameter Value
product IP switching module
connectivity 2,4 GHz (IEEE 802.15.4)
maximum number of connected clients –
compatibility EMOS GoSmart, TUYA, LIDL, Smartlife, Open system
control by voice assistants yes
protocol Zigbee 3.0
pairing automatic, manual
aplication languages EN, CZ, SK, PL, DE, HU, SI, FR, + 60 other languages
width 39 mm
depth 19 mm
Parameter Value
height 39 mm
weight 44 g
use indoor
number of control buttons 1
power supply 230 V~/50 Hz, max. 0,3 W
supported OS Android, iOS
source included in packaging no
packaging 1 pc, paper box
line GoSmart

EMOS GoSmart app

Install the brain of your smart home on your mobile device.

Control your smart home
Control all your devices
Don’t miss important visits
Create smart scenarios
Access from anywhere
Share it with your family

Control all your products with a single app

Full localisation and ease of use

The EMOS GoSmart app makes it easy to control all your smart home devices via your mobile phone or tablet. Thanks to its perfect localisation, you can set it up to your native language.

Without complicated settings, the EMOS GoSmart app gives you an up-to-date overview of any activity in your home and allows you to conveniently control all your smart devices remotely.
